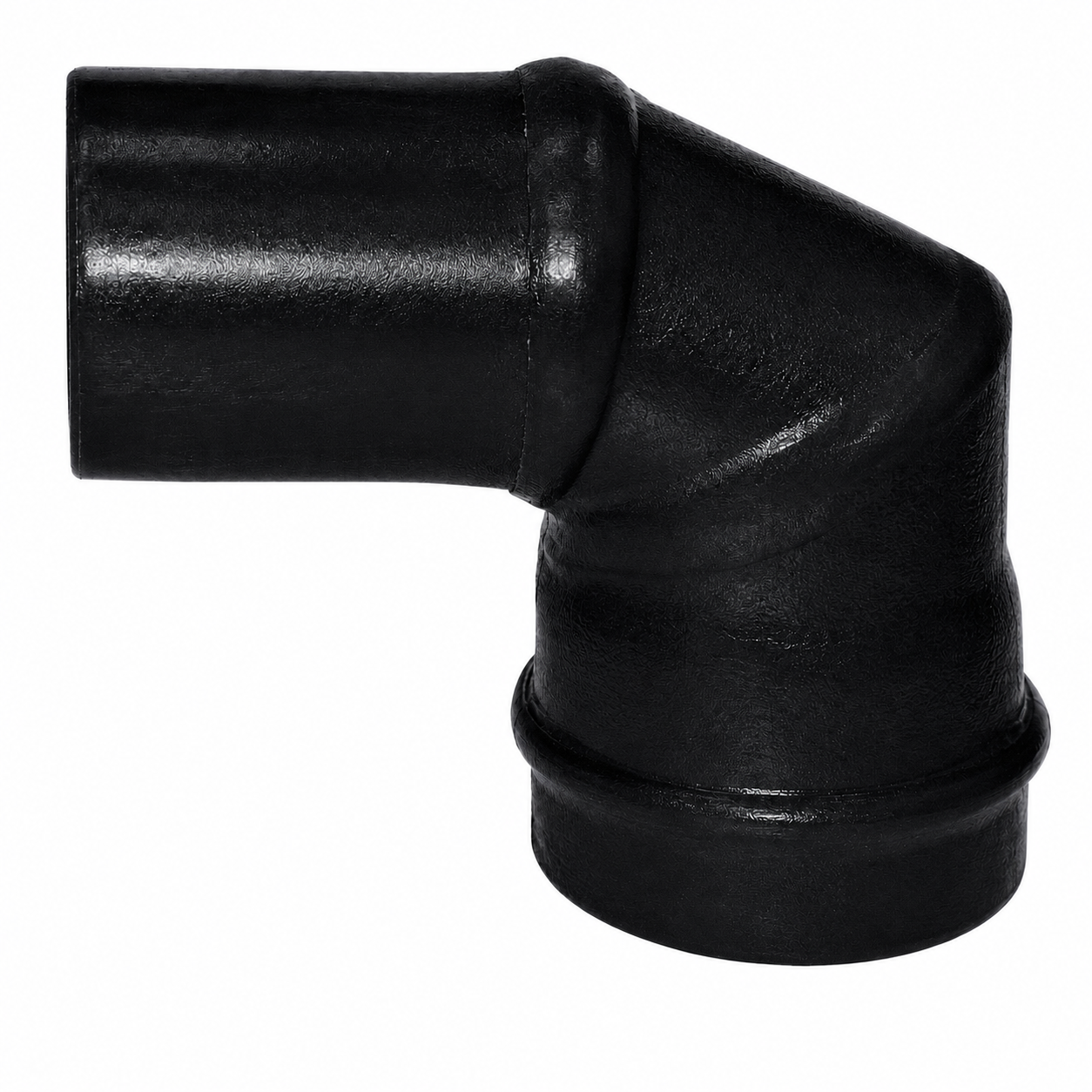

| Normal Outside Diameter mm القطر الخارجي |
Socket Depth mm منطقة التداخل |
Class II 4 BAR |
Class III 6 BAR |
Class IV 10 BAR |
Class V 16 BAR |
||||
|---|---|---|---|---|---|---|---|---|---|
| No.Thick of wall mm سمك الجدار | Nom.wt kg / m وزن المتر |
No.Thick of wall mm سمك الجدار | Nom.wt kg / m وزن المتر |
No.Thick of wall mm سمك الجدار | Nom.wt kg / m وزن المتر |
No.Thick of wall mm سمك الجدار | Nom.wt kg / m وزن المتر |
||
| 20 | 1.5 | 0.137 | |||||||
| 25 | 1.5 | 0.174 | 1.9 | 0.212 | |||||
| 32 | 1.8 | 0.264 | 2.4 | 0.342 | |||||
| 40 | 1.8 | 0.334 | 1.9 | 0.35 | 3 | 0.525 | |||
| 50 | 75 | 1.8 | 0.422 | 2.4 | 0.552 | 3.7 | 0.809 | ||
| 63 | 100 | 1.9 | 0.562 | 3 | 0.854 | 4.7 | 1.289 | ||
| 75 | 110 | 1.8 | 0.642 | 2.2 | 0.782 | 3.6 | 1.22 | 5.6 | 1.82 |
| 90 | 110 | 1.8 | 0.774 | 2.7 | 1.13 | 4.3 | 1.75 | 6.7 | 2.61 |
| 110 | 115 | 2.2 | 1.16 | 3.2 | 1.64 | 5.3 | 2.61 | 8.2 | 3.9 |
| 125 | 120 | 2.5 | 1.48 | 3.7 | 2.13 | 6 | 3.34 | 9.3 | 5.01 |
| 140 | 125 | 2.8 | 1.84 | 4.1 | 2.65 | 6.7 | 4.18 | 10.4 | 6.27 |
| 160 | 132 | 3.2 | 2.41 | 4.7 | 3.44 | 7.7 | 5.47 | 11.9 | 8.17 |
| 180 | 145 | 3.6 | 3.02 | 5.3 | 4.37 | 8.6 | 6.88 | 13.4 | 10.4 |
| 200 | 145 | 4 | 3.7 | 5.9 | 5.37 | 9.6 | 8.51 | 14.9 | 12.8 |
| 225 | 152 | 4.5 | 4.7 | 6.6 | 6.76 | 10.8 | 10.8 | 16.7 | 16.1 |
| 250 | 160 | 4.9 | 5.65 | 7.3 | 8.31 | 11.9 | 13.2 | 18.6 | 19.9 |
| 280 | 170 | 5.5 | 7.11 | 8.2 | 10.4 | 13.4 | 16.6 | 20.8 | 24.9 |
| 315 | 180 | 6.2 | 9.02 | 9.2 | 13.2 | 15 | 20.9 | 23.4 | 31.5 |
| 355 | 180 | 7 | 11.4 | 10.4 | 16.7 | 16.9 | 26.5 | 26.3 | 39.9 |
| 400 | 200 | 7.9 | 14.5 | 11.7 | 21.1 | 19.1 | 33.7 | 29.7 | 50.8 |
| 450 | 290 | 8.9 | 18.3 | 13.2 | 26.8 | 21.5 | 42.7 | ||
| 500 | 330 | 9.8 | 22.4 | 14.6 | 32.9 | 23.9 | 52.6 | ||
| 560 | 330 | 11 | 28.1 | 16.4 | 41.4 | 26.7 | 65.8 | ||
| 630 | 360 | 12.4 | 35.7 | 18.4 | 52.2 | 30 | 83.2 | ||
| 710 | 380 | 14 | 45.3 | 20.7 | 66.1 | ||||
| 800 | 410 | 15.7 | 57.2 | 23.3 | 83.9 | ||||
